It is designed to safely pass through wide openings while being used safely in buildings where fire risk is high and in buildings where maximum fire resistance is required.

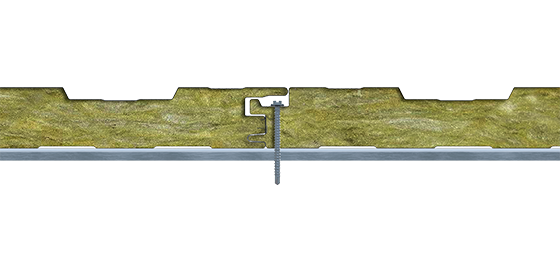

WDWT WALL PANEL
- It offers high acoustic performance thanks to the stone wool inner filling material.
- It is suitable for use on facades thanks to its system that hides the facade panel fastener.
- It provides installation flexibility thanks to its ability to be applied both horizontally and vertically.
- It offers the best fire resistance performance thanks to its stone wool inner filling material.
- Fast and trouble-free installation saves both time and labor.
Product Information
Production Plant
Balıkesir
Favourable Width
1000 mm
Minimum Length
3 meters
Maximum Length
Depends on Transport Conditions
Mineral Wool Density
100 (±10) kg/m3
Mineral Wool Thickness
50-60-80 mm
Thermal Conductivity (EN 13165)
0,043 W/ mK
Mineral Wool Inflammability Class (EN 13501-1)
A1
Water Absorption (EN ISO 354)
By Volume %2 (168 hours)
Ses Yalıtımı Rw [dB] ≥
30
Vapour Diffusion Resistance (EN 12086)
1
Heat Resistance
600 ºC
